Infrared Electrical Inspections

Find Hot spots, Avoid Unscheduled Maintenance, Reduce Down Time, Increase Safety and Profits

Infrared electrical inspection finds overheating connector
Corroded fuse clip temination overheats the fuse
Infrared image shows a hot connection on a breaker caused by a loose screw
This overheated connection measured in excess of 200 degrees!
Fuse clip problem
This switch has an internal connection problem
Infrared Image Breaker showing signs of overheating

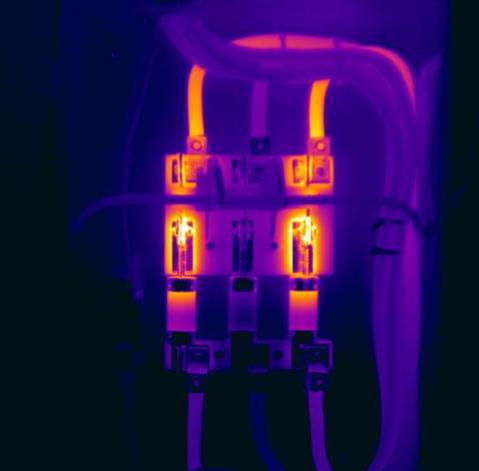

Infrared image of  a Disconnect Switch with resistive contacts heating up
Hot jumper wire on timer
Buss bars behind the breakers are overheating
This overheating electrical connection was caused by a loose screw
Image of an Infrared electrical survey, phase A
Loose connection on "A" phase
Loose connections cause overheated wires conections and buss bar
One panel,multiple exceptions
All phases on this breaker are overloaded

Infrared Electrical Inspection Services

Detect system overloads, loose defective components and damaged switchgear. Infrared electrical testing finds hot, dangerous problems quickly.

Infrared electrical inspections find hot spots caused by defects in connections and components. Infrared thermography is used to find areas of excess heat (caused by increased resistance) so that problems can be corrected before a component fails, causing damage to the component, creating safety hazards and productivity loss. Because increased heating is a sign of failure, infrared is the best diagnostic tool available for finding these hot connections in the early stages of degeneration. This is why your insurance company may have asked for an electrical infrared inspection, to find and prevent problems before they cause damage to your personnel, equipment and facility.

Conditions detectable by an infrared inspection:

Benefits of Infrared Inspection

  • Loose/deteriorated connections
  • Overloads
  • Open circuits
  • Unbalanced loads
  • Inductive heating
  • Harmonics
  • Defective equipment
  • Reduce unscheduled down time
  • Increase equipment life
  • No service interruption during inspection
  • Lower risks
  • Lower repair costs
  • Increase profits
  • Prevent catastrophic failures
  • Lower insurance premiums due to reduced losses

Infrared Imaging Services LLC performs Electrical infrared inspections in accordance with the Infraspection Standard for Infrared Inspection of Electrical Systems & Rotating Equipment.

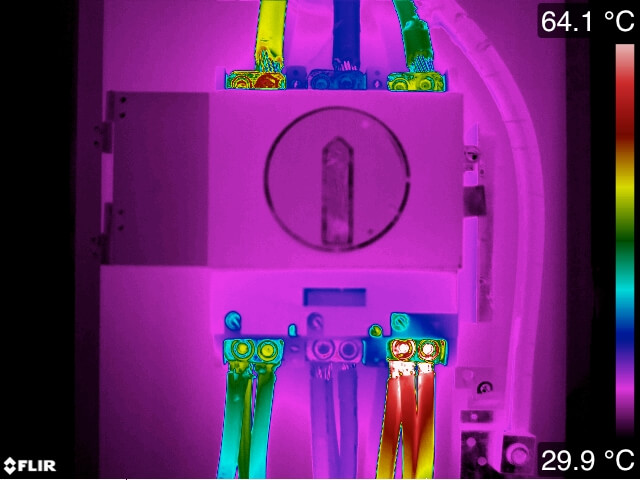

Infrared image of hot connection on 800Amp switch
Loose connection

These images from an electrical infrared inspection show overheated connections. The left image is an 800 amp switch with an internal connection problem overheating the bottom right wires. The right image shows heat generated from a loose connection on the top wire.

The National Fire Protection Association (NFPA) 70B §11.17.5 suggests that every commercial and industrial building in the United States should have an IR survey at least once a year.

Call 845-641-5482 to schedule an infrared electrical survey.

How does Infrared find electrical problems?

Picture of Gerog Simon OhmGeorg Simon Ohm (16 March 1789 - 6 July 1854) was a German physicist who discovered there is direct proportionality between the voltage applied across a conductor and the resultant electric-current now known as "Ohm's Law".

Ohm discovered that for a given current, as a component's resistance increases it will dissipate more power and its temperature will rise.

Increased resistance and heat are the primary reasons most electrical components fail.  Infrared cameras detect this heat. Because most things electrical tend to get hot before they fail, Infrared inspection is the perferred diagnostic technology used to detect early failures in electrical systems and switchgear.

Even new components can be defective

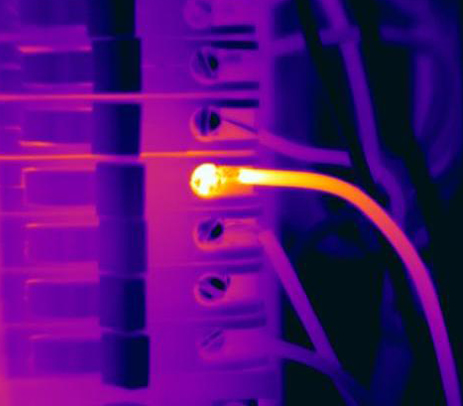

Loose screw on breaker causes hot connection

In electrical systems increased resistance can be caused by component age, fatigue, oxidation, wear, loose connections or poor installation.

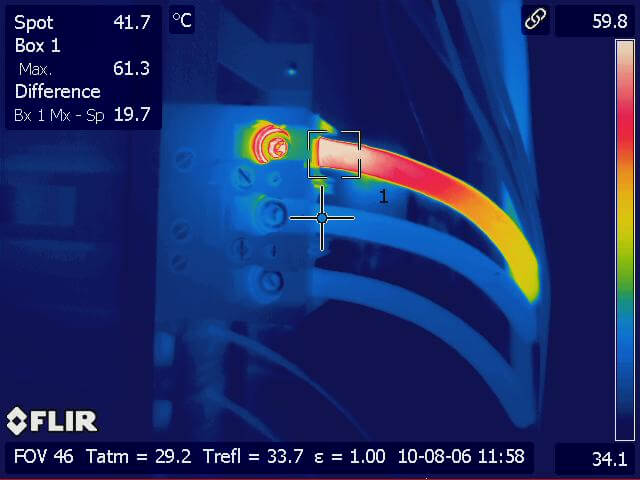

This 20 amp circuit breaker has a loose wire screw. The loose connection has increased resistance causing it to get hot. Our high resolution imager clearly shows the hottest area of the wire is by the screw head.

Electrical Infrared Surveys Improve Safety, Reliability & Reduce Down Time

Infrared electrical inspections performed per NFPA and insurance company recommendations can detect and document incipient failures and should be combined with timely, effective repairs.

This video demonstrates how an electrical Infrared survey is performed.

Looking for information on Electrical Infrared inspections?

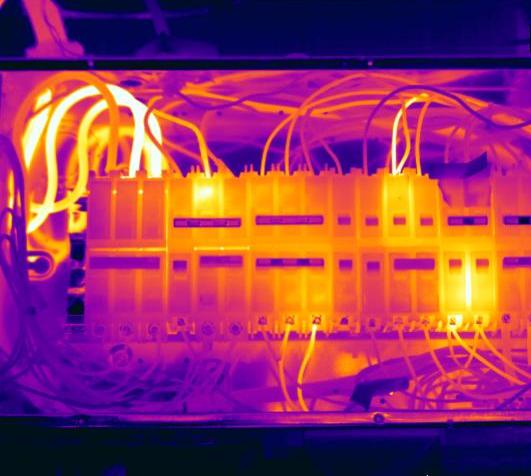

Electrical panel shows several suspect connections

Call 845-641-5482 to discuss your needs.

This breaker panel shows several connections generating heat. The problems may be caused by loose wires, corroded connections or excessive current draw. An infrared electrical inspection can minimize injury, liability, damage, catastrophic failures and downtime.

Few investments have the substantial ROI of an infrared electrical survey.

Before an electrical component burns up, it heats up. Infrared thermography is used to perform Pd/Pm inspections on electrical equipment because excess heat is usually the first sign of trouble on electrical (or mechanical) apparatus. Loose connections, imbalanced circuits, defective breakers, damaged switchgear, faulty fuses or fuse clips, overloaded circuits, poor workmanship, material defects and a range of other conditions will eventually lead to excess heat and component failure.

Defective Knuckles on switch

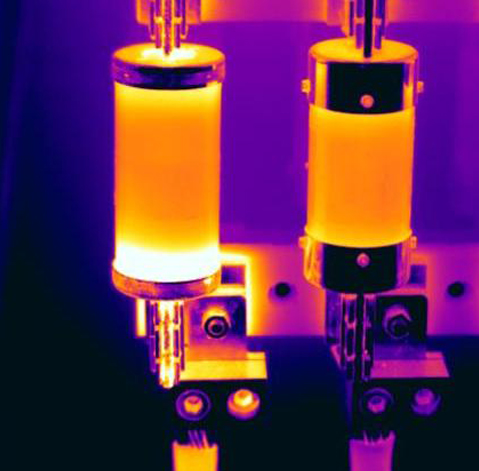

Hot fuse has problem at lower connection
Defective Knuckles on disconnect switch overheating. Defective fuse clip will cause circuit failure.

Infrared Thermography can find problems early in the failure cycle. Early detection allows maintenance personnel to take corrective action before a component fails, minimizing damage to the component and reducing repair costs. Call us to discuss ROI on a cost effective electrical inspection at your facility.

Infrared image of an overheating connection

Infrared scanning of electrical components and systems should be part of any predictive maintenance program and performed on a routine basis per the National fire Protection Association

The use of Infrared to detect the early indications of failure is prudent and cost effective. With infrared, preemptive action can be taken to minimize equipment breakdowns and safety hazards.

The image on the left shows overheated spliced connections and loose breaker wire.

Electrical Commissioning

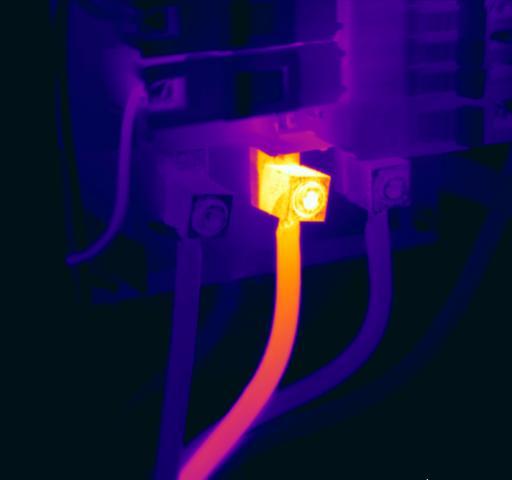

Loose connection on B phase measures over 200F

The electrical distribution system is the foundation for every other system in a commercial building. An electrical system failure will cause communication, fire saftey, security and other mechanical systems to fail as well.  It might seem like overkill to go through the commissioning process, but a study on losses associated with electrical failure showed that over 50% of the 766 losses were caused by inadequate maintenance and testing.

Fortunately, this company's insurance underwriter insisted on an Infrared electrical inspection prior to issuing the policy. Its a good thing they did. The image on the left shows a severely overheated connection, it will eventually fail.

Infrared scans of Electrical power systems

  • Determines if the components and system have been properly installed and are not damaged
  • Reduces downtime
  • Reduces risk of equipment failure
  • Increases safety
  • Improves insurability
  • Reduces liability exposure of the designers and installers
  • Improves system performance
  • Determines whether components and systems operate properly and meet the design intent
  • Determines if components and systems are in compliance with the project specifications and design
  • Reduces construction schedule delays
  • Saves money

If you have a new or remodeled commercial building, or are installing, upgrading or maintaining your commercial power system, feel free to give us a call and set up an electrical infrared scan of site. Make sure you are getting what you pay for, and that your building and systems are functioning according to specifications!

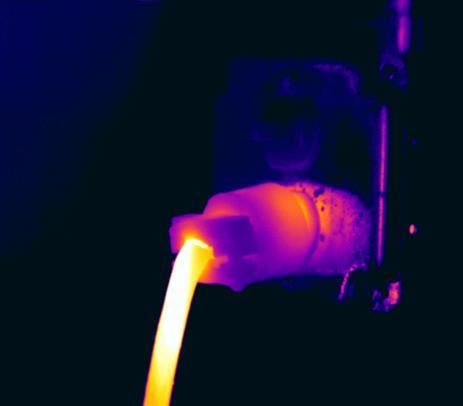

Infrared image of Overheating plug

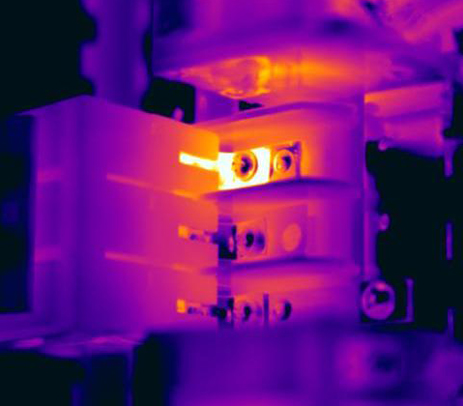

Infrared image of Very hot loose screw on a breaker
Infrared image of a hot and loose wire on breaker

Infrared image of Hot wires and buss bar due to loose connectios

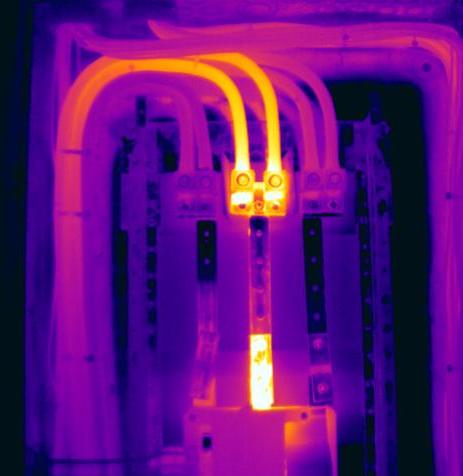

These supply cables in the image on the left are overheating at the lug connection. The lower portion of the center vertical buss bar is hot due to a loose connection where it is bolted togeather with the lower section of buss bar.

Infrared thermography can quickly identify potential problems with breakers, inter connections, wire crimps, and loose or corroded connections. You can reduce unscheduled down time and catastrophic failures with an Infrared electrical survey.

An effective preventative maintenance strategy must include an infrared scan of all electrical, moving and rotating equipment!

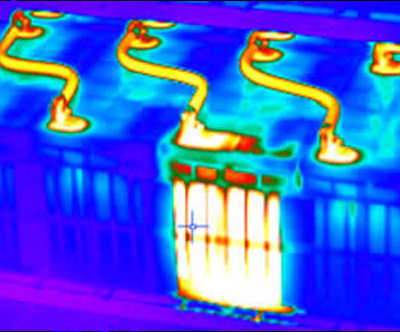

Infrared image of UPS Battery

In this image (left) of a UPS system battery bank during a load test, a battery which is more resistive literally screams, "Replace me, I'm running hot!"

For battery banks, an IR scan is a great way to perform a quality check of the entire "System" not just any one cell.

We can see thermal abnormalities in each battery, connector, and terminal block. Every interconnect cable, distribution panel, and fuse can be checked!

For preventative maintenance on electrical systems, it's hard to beat the NON-CONTACT method of infrared!

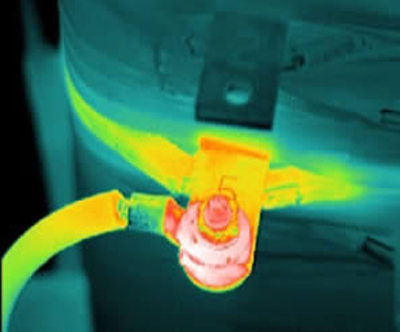

Image below left: a typical example of how infrared can quickly see a loose or deteriorated connection.. Here we have a loose connection on a transformer tap. If left unrepaired, this part will fail, the transformer will fail, and anything that it is supplying voltage to will go down.

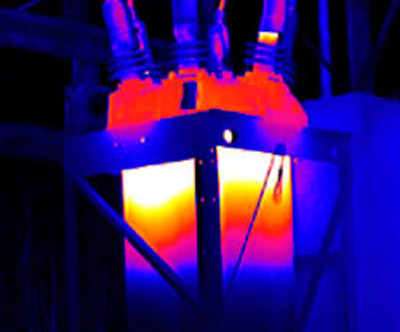

Image below right: an Oil Circuit Breaker at a utility substation; with infrared imaging it's easy to see that there is something wrong here!

In very little time, a well-trained thermographer can find these problems, allowing you to schedule the repair before unscheduled failure happens.

The cost of an IR scan is small in comparison to its benefits. Return on investment is very easy to justify! Contact Infrared Imaging Services to set up an infrared scan appointment at your facility.

Loose Transformer
Hot Transformer
