Infrared detects buried steam pipe leak

Infrared steam pipe inspection finds leaks in buried steam pipes and condensate lines in New York, New Jersey and Connecticut.

Thermal imaging eliminates the need for random, destructive and expensive excavation. We find steam pipe leaks quickly

Thermal imaging located leaks in steam pipes

Infrared imaging locates leaks in buried steam pipes and condensate lines. Commercial boilers have fill-monitoring systems to notify the property owner when the boiler is taking in replacement water. This notice is often first indication a property owner has that a steam leak is present somewhere in the system. It is not uncommon for a system with steam leak to take in large quantities of water fresh water, sometimes hundreds of gallons per day.

Replacement water comes into the boiler “cold” and needs to be heated by the boiler. Heating this constant flow of replacement cold water into steam increases fuel bills and reduces operational efficiency. It can also introduce additional minerals, contaminants and sediment into the boiler, leading to the need for additional maintenance and repairs.

Call us at 845-641-5482

Underground steam leak located with Iinfrared

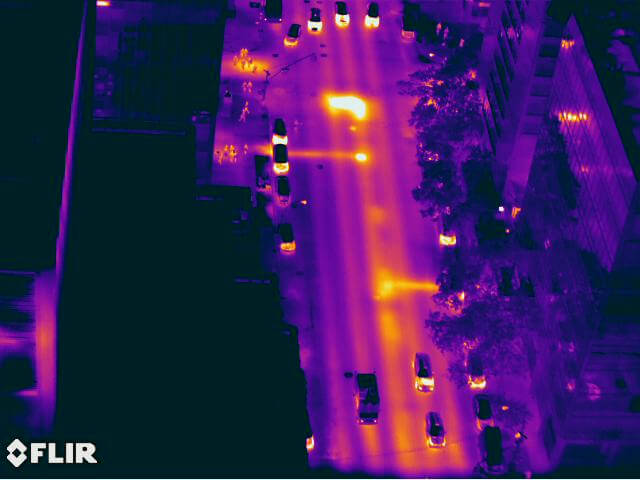

Thermogram showing steam lines under a city street

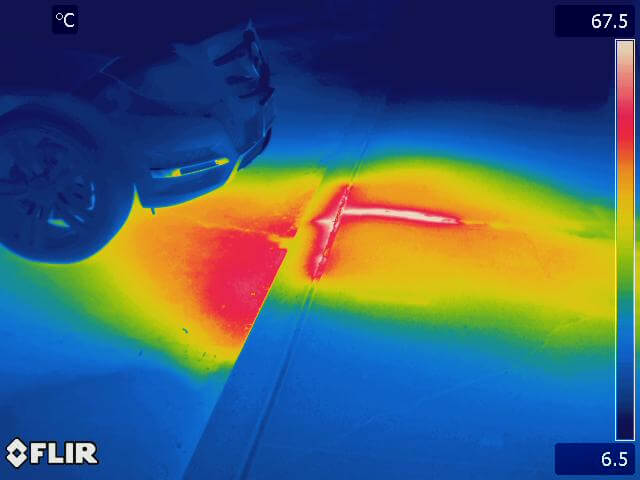

First image: Infrared inspection locates a break in a steam pipe under a parking lot.  Second image: Shows steam lines and leaks under a city street.

Our high-resolution thermal imager can precisely locate the leak site and mark its location. Infrared steam leak location services can eliminate the random and expensive excavation work often used to find leaks in outdoor buried steam pipes. Interior steam leaks are pinpointed and the flooring marked to eliminate unnecessary digging and destruction of decorative or hard to replace flooring surfaces.

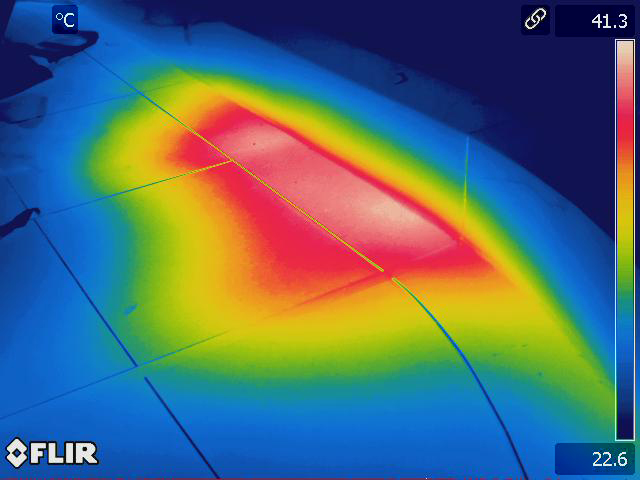

Infrared image of steam pipe leak under terrazzo floor

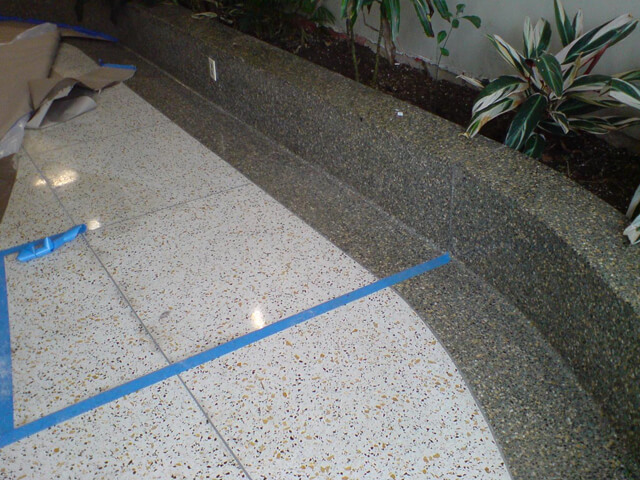

Daylight image of steam pipe leak under terrazzo floor

Thermal imaging finds a steam leak under a terrazzo floor. Random digging is avoided by using infrared

Infrared steam pipe inspection works on outdoor steam lines as well as indoor heating supply and condensate lines. Thermography is non-destructive and non-contact making it an excellent diagnostic tool which eliminates needless destruction in a tenant’s apartment.

Underground steam pipe leak located using infrared imaging
Infrared locates leak in a steam pipe

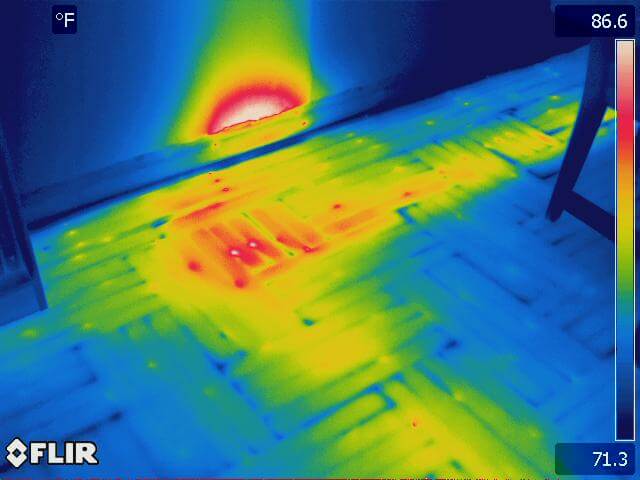

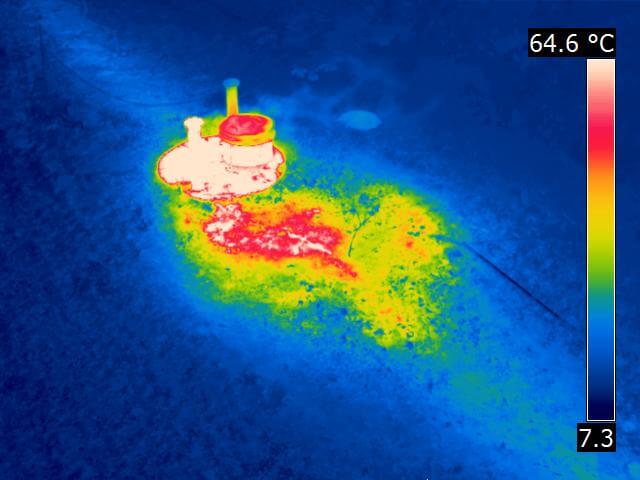

First image: Shows a hot spot on the ground where there is a steam leak near the access hatch. Second image: Shows a steam pipe leak under a wooden floor in an apartment.

Steam pipe leaks can be caused punctures, bad connections, freezing, settling or cracked cement substrate and age. In commercial buildings and apartments built many years ago the old iron steam pipes often fail at connection points such as elbows, unions and “Tees”.

Infrared thermal imaging inspections can typically pinpoint the exact location of the defective joint, connection of defect in the pipe allowing for a precise repair with minimal excavation damage to surrounding areas.

Contact Us  to find the leak in your steam system 1– 845-641-5482
